Infinity Pipe Systems are thrilled to announce the launch of our new range of M-press 316L stainless steel press-fit pipe and fittings range, designed to provide unparalleled durability, reliability, and performance.
Infinity Stainless
Already trusted for our premium aluminium systems, we’ve expanded our product range to meet the growing demand for robust and versatile solutions for compressed air and hydraulic applications.
- Watermark Certification and Australian Standard compliance
- A market-leading 20-Year Warranty
- Guaranteed max pressure rating up to 40 bar when installed using a Novopress high pressure clamping device. Standard pressure between 16-40 bar.
- FKM O-Rings as standard, perfectly suited to meet the industry requirements of hydraulic and compressed air piping.
- Press Indicators that break away when installed correctly, providing peace of mind that your system will be leak-free and ready to get to work.

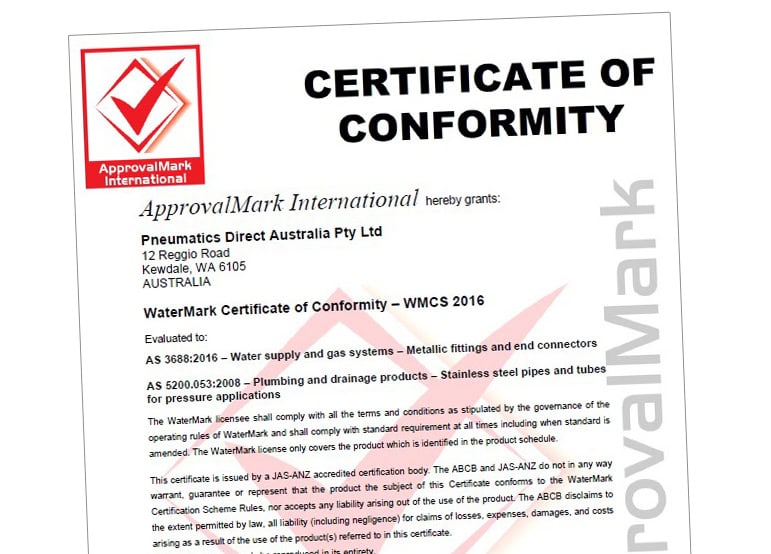

Complies with Australian Standards and is Watermark Certified.
Evaluated to and complies with
- AS 3688:2016 – Water supply and gas systems – Metallic fittings and end connectors
- AS 5200.053:2008 – Plumbing and drainage products – Stainless steel pipes and tubes for pressure applications
20-Year Warranty
Our stainless steel pipe and fittings are crafted with premium-grade materials and engineered to withstand the test of time.
With a 20-year market-leading warranty, you can trust in the long-term reliability and performance of your Infinity Stainless system.
Rated up to 40 Bar
Capable of handling a maximum pressure of 40 bar* the Infinity Stainless range is designed to meet the needs of demanding applications. Whether it’s for compressed air or hydraulic piping systems, these products deliver superior strength and safety.
*Infinity Stainless systems are guaranteed to have a maximum pressure
of 40 bar for sizes 28mm-54mm when installed using a high-pressure
Novopress tool and high-pressure collars. The Novopress ACO403 tool is
required for sizes 76mm and above.
| Size | Standard Pressure | Max Pressure* |
|---|---|---|
| 15-22mm | 40 bar | 40 bar |
| 28-35mm | 25 bar | 40 bar |
| 42-108mm | 16 bar | 40 bar |
| 139-168mm | 16 bar (single press) |
20 bar (Double Offset Press) |

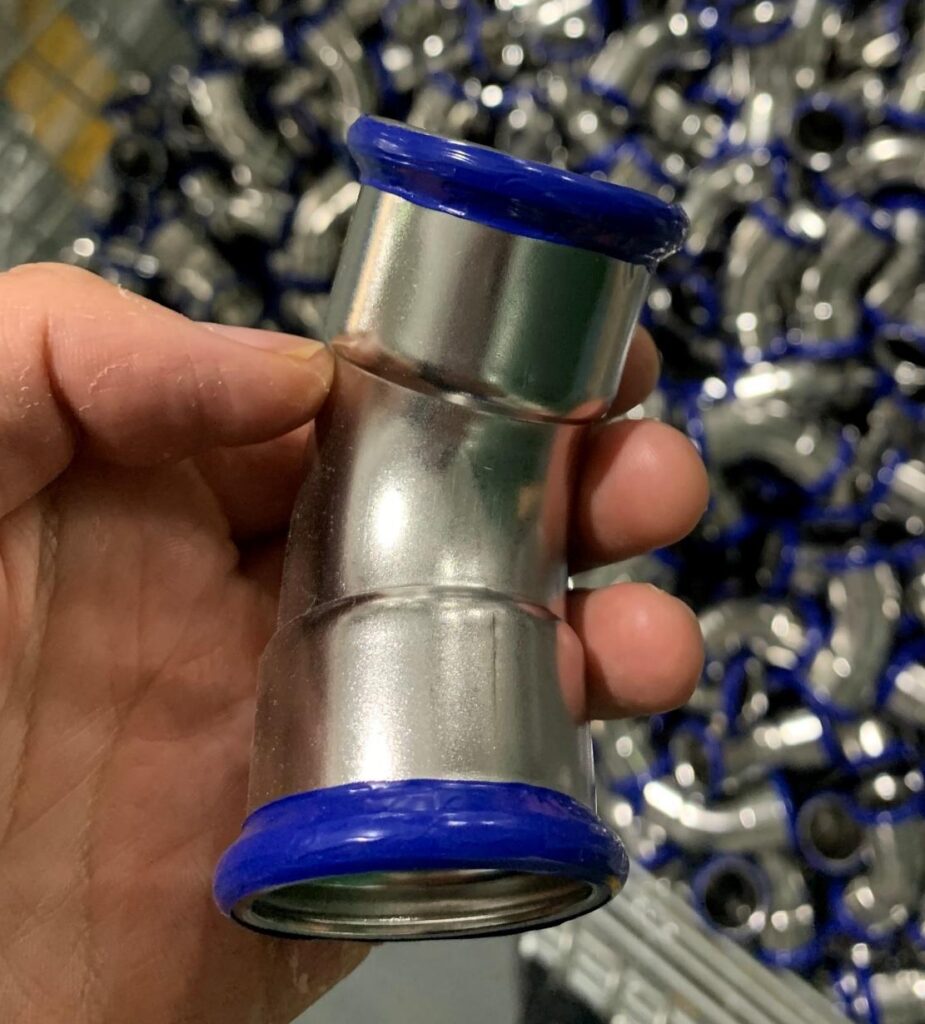

Press Indicators
Achieve confidence during installation with our innovative press indicator. When installed correctly, these indicators break off, providing peace of mind that your connection is secure and leak-free.
FKM O-Rings as Standard
Components in our stainless steel range come with green FKM O-rings fitted as standard, providing exceptional sealing performance and superior resistance to oils, fuels, chemicals, ozone, and temperature fluctuations.
Applications
Our 316L stainless steel pipes and fittings are perfect for:

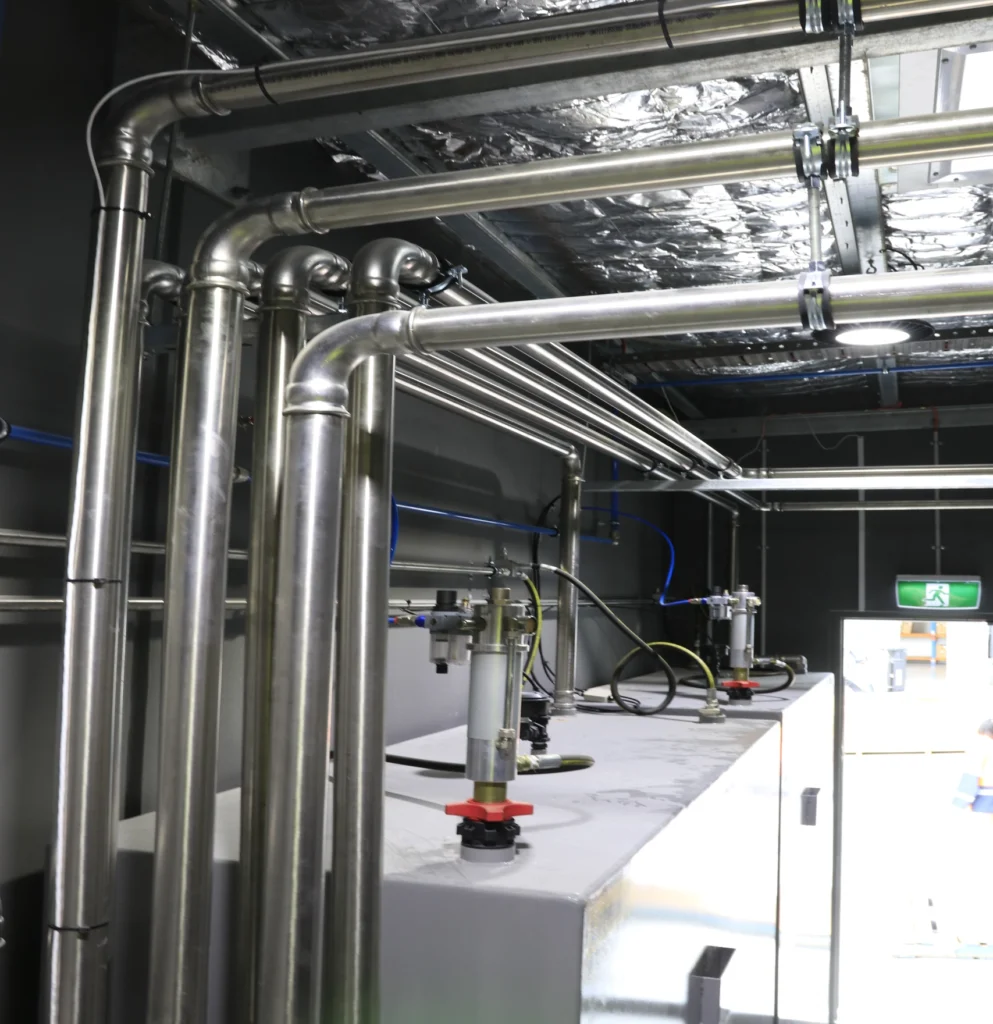

Compressed Air Systems: High-efficiency distribution with minimal pressure loss.
Hydraulic Applications: Handles high-pressure fluids with ease, ensuring stable and consistent performance.
Industrial Environments: Corrosion-resistant and suitable for harsh settings.
Food and Beverage: Hygienic and safe for sensitive operations.
Specialised Industries: Perfect for sectors requiring stringent hygiene and corrosion resistance, such as food processing and medical manufacturing.
With over 20 years of expertise and a network of trusted installers around Australia, Infinity Pipe Systems has what you need for your next compressed air or hydraulics project.
Seamless Integration
Already using our aluminium system? Our stainless steel range is designed to easily integrate with your existing setup, giving you flexibility and functionality without the need for costly overhauls.
Flexibility in Design
Infinity Pipe Systems have all the pneumatic accessories, adaptors, actuators, manifolds, ball valves, pressure regulators, flow control valves and cylinders you need to design a complete end-to-end stainless steel system.
Ready for Stainless Strength?
Whether you’re building a new system or upgrading an existing one, discover the superior performance and longevity of Infinity Pipe Systems new range of stainless steel pipe and fittings.
Stay ahead with Infinity Pipe. Stay strong with Infinity Stainless.
