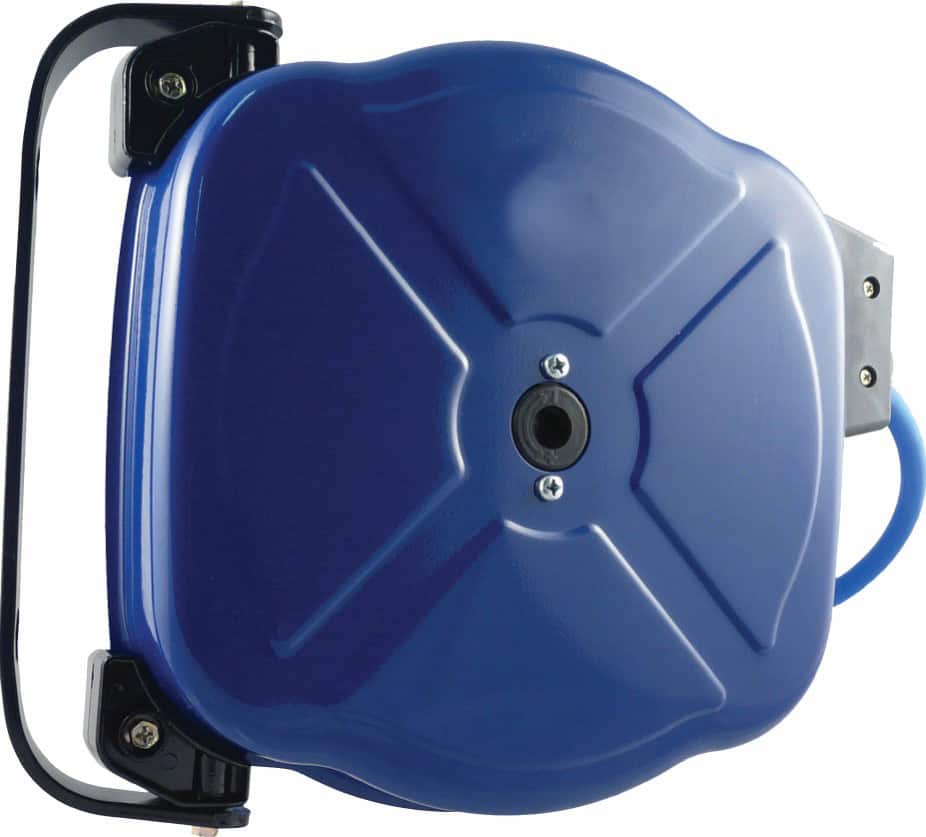

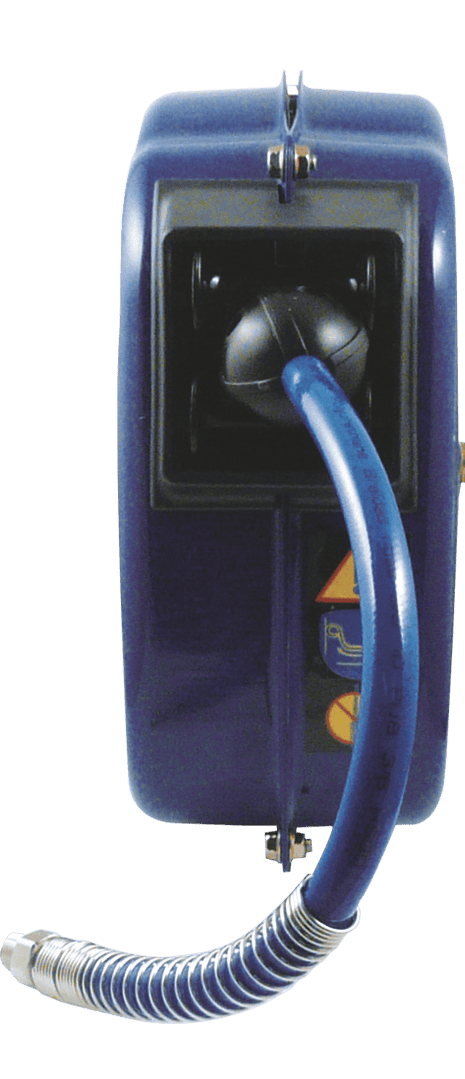

Steel Retractable Air Hose Reel
Steel Retractable Air Hose Reel
Code Number – HR3/8X10M
- Air hose and reel equipped with automatic level rewind system
- 180° rotational mounting bracket

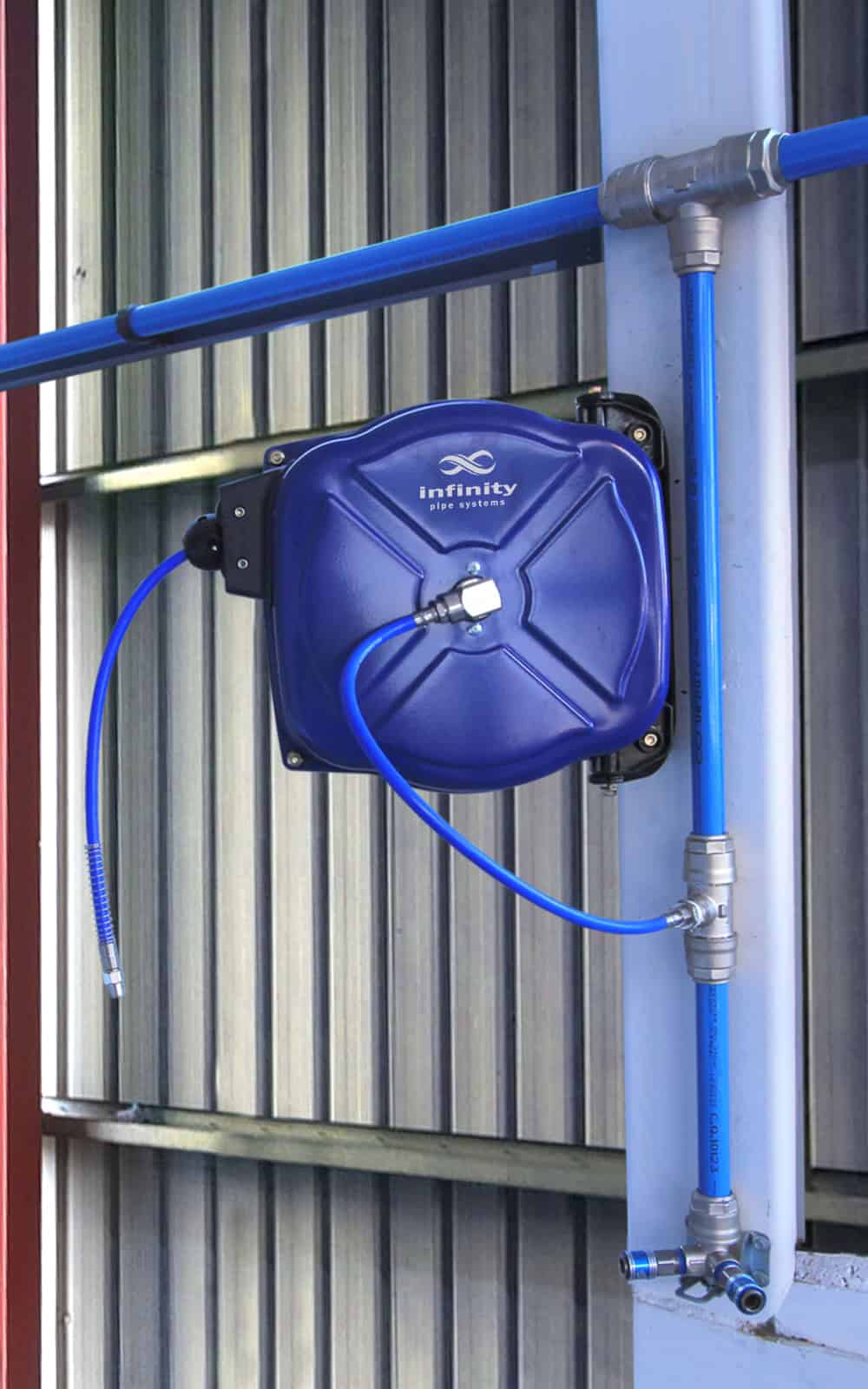

- The air hose reel can be mounted to the wall or ceiling
- Durable construction; made from high quality impact powder coated heavy duty steel
- Positive latching mechanism-automatically locks hose at the desired length
- Brass coupling connection with 360° rotation
Description
Product Description
The Infinity steel retractable air hose reel offers easy and safe delivery of compressed air. The fully enclosed heavy duty case is UV resistant and fitted with a heavy duty spring and swivel elbow.
Complete with rotational mounting bracket, this compact, lightweight retractable hose reel is suitable for any workshop and complements the Infinity range.
| CODE | DESCRIPTION |
| HR3/8X10M | Infinity 3/8″ Steel Retractable Air Hose Reel 10m |
Technical Specifications
| Outer Diameter | 13.5mm |
| Internal Diameter | 10mm |
| Max Pressure | 20bar |
| Working Temperature | -5°C / +60°C |
| Single Packaging Size | 240mm L x 215mm W x 95mm H |
| Steel Housing | Powder painted heavy duty steel case |
| Spring | Strong, steel spring. Automatically rewinds hose after catch is released |
| Mounting Bracket | Wall or ceiling; fixed or pivoting support |
| Stopper | Can adjust the length of hose remaining outside the reel when retracted |
| Air Inlet | Brass coupling, 360° rotation |
| Connection | Hose connects with male fitting or quick coupling |
| Hose | Included |
Technical
| HR3/8X10M | |
| Outer Diameter | 13.5mm |
| Internal Diameter | 10mm |
| Max Pressure | 20bar |
| Working Temperature | -5°C / +60°C |
| Single Packaging Size | 240mm L x 215mm W x 95mm H |
| Steel Housing | Powder painted heavy duty steel case |
| Spring | Strong, steel spring. Automatically rewinds hose after catch is released |
| Mounting Bracket | Wall or ceiling; fixed or pivoting support |
| Stopper | Can adjust the length of hose remaining outside the reel when retracted |
| Air Inlet | Brass coupling, 360° rotation |
| Connection | Hose connects with male fitting or quick coupling |
| Hose | Included |
