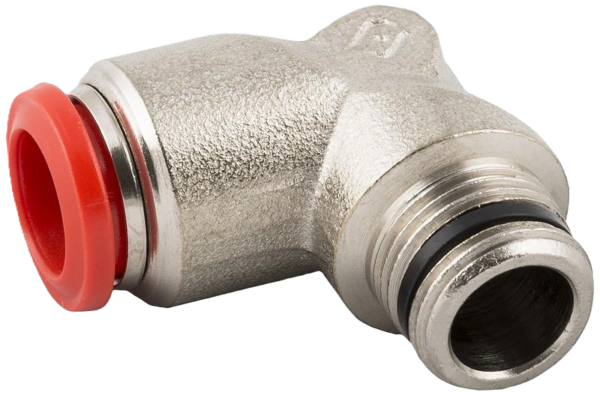

Male Elbow Adaptor

Code Number – 50100



  • Made from nickel plated brass
  • Compatible with air, vacuum, water and steam
  • Stainless steel washer ensures perfect tube clamping on all types of metals
  • All threads are equipped with tightening parts
  • The short taper thread has been designed to reduce overall length and allow assembly with different female threads (both taper as well as parallel)
SKU: 50100 Category:
Description

Product Description

Infinity push-in fittings, made from nickel plated brass, are compatible with air, vacuum, water and steam. When compared to other products on the market, Infinity Push-In Fittings boast an impressive list of advantages.

The stainless steel washer ensures the perfect tube clamping on all types of metals, without damage to the surface.

The connection between the tube and fitting, and the particular geometric shape of the seal, ensures a total tightness for all applications, even in severe conditions such as impact and vibrations.

The ‘short’ taper thread has been designed to offer a reduced overall length and smaller hex dimensions compared to parallel threads, and tightening parts allow the direct assembly of the fittings, keeping installation time to a minimum.



CODE DESCRIPTION
50100 4-M5 Male Elbow Adaptor 4mm x M5
50100 4-1/8 Male Elbow Adaptor 4mm x 1/8″
50100 6-1/8 Male Elbow Adaptor 6mm x 1/8″
50100 6-1/4 Male Elbow Adaptor 6mm x 1/4″
50100 8-1/8 Male Elbow Adaptor 8mm x 1/8″
50100 8-1/4 Male Elbow Adaptor 8mm x 1/4″
50100 10-1/4 Male Elbow Adaptor 10mm x 1/4″
50100 10-3/8 Male Elbow Adaptor 10mm x 3/8″
50100 12-1/4 Male Elbow Adaptor 12mm x 1/4″
50100 12-3/8 Male Elbow Adaptor 12mm x 3/8″
Technical
MIN WORKING PRESSURE -0.99 bar
MAX WORKING PRESSURE 15 bar
MIN TEMPERATURE -20°C
MAX TEMPERATURE 80°C
COMPATIBLE FLUIDS Air, vacuum, water & steam
