Manual Lockout L-O-X Valves, Classic
Manual Lockout L-O-X Valves, Classic
- Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity

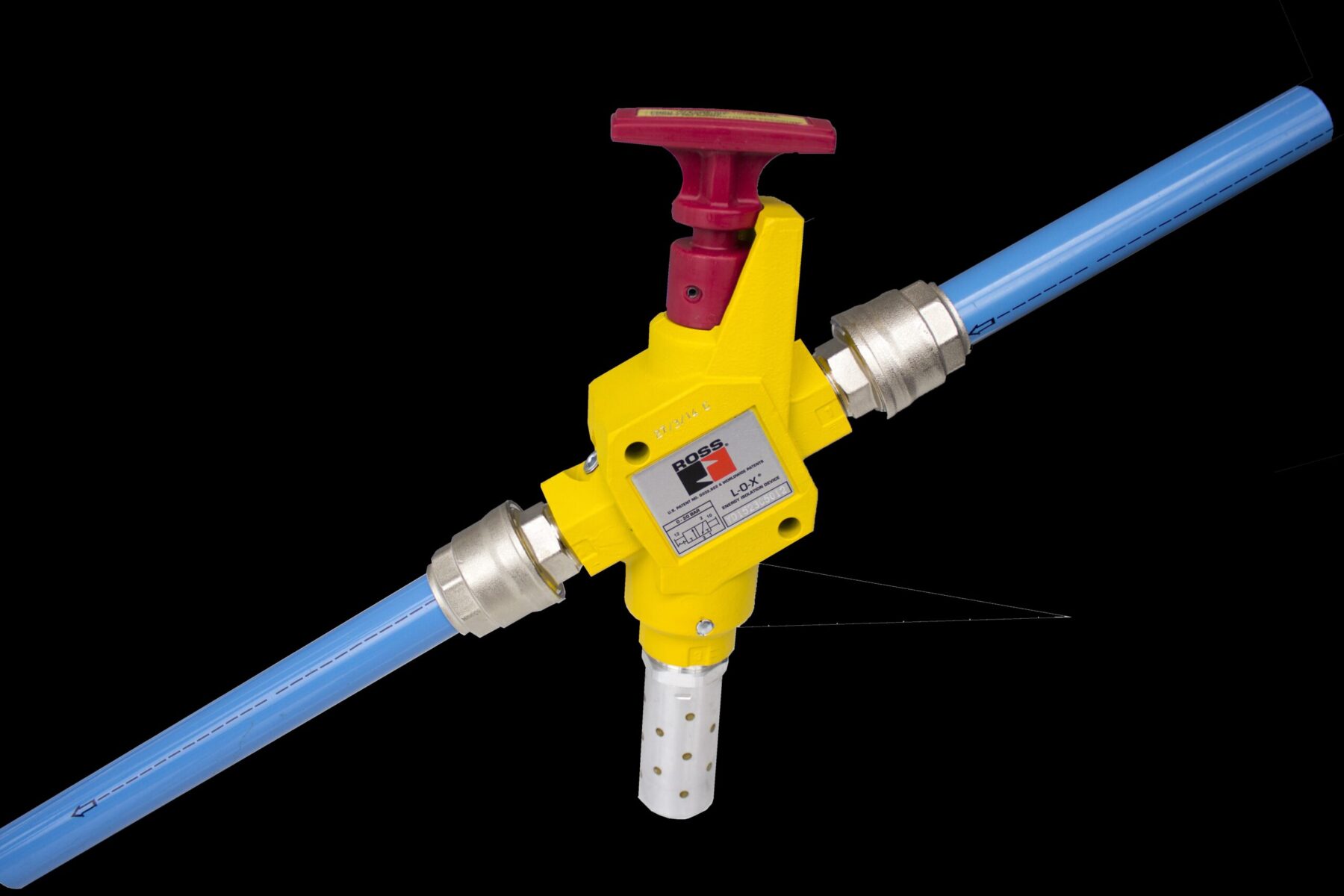

- Easily identified by yellow body with red handle
- Integrated sensing port for pressure verification
- Self-draining, washdown suitable design
- Trusted L-O-X® performance
- Lockable only in the OFF position
- Large exhaust port for rapid release of pressure
- Has a full size exhaust port (equal to or larger than supply)
- Simple push/pull of the large red handle provides positive direct manual operation
- 15 Series, 3/8″ thru 1-1/4”
Description
Product Description
Energy Isolation, Increase Safety and Peace of Mind.
ROSS L-O-X® valves are energy isolation valves and are generally used as the first valve in a line supplying compressed air to equipment. Air can be shut off by pushing the L-O-X® handle inward; downstream air is simultaneously exhausted through the L-O-X® exhaust port.
Many standards & regulations, e.g., OSHA, require that the valve be padlocked in this position to prevent handle from being pulled out inadvertently during maintenance and/or servicing.
| MODEL | DESCRIPTION |
| Y1523C5002 | Lockout Valve 15 Series / Classic Manual 3/2 Way, 3/4″ In-Out 1-1/4″ Exhaust NPT |
| Y1523C7012 | Lockout Valve 15 Series / Classic Manual 3/2 Way, 1-1/4″ In-Out 1-1/4″ Exhaust NPT |
| YD1523C6002 | Lockout Valve 15 Series / Classic Manual 3/2 Way, 1″ In-Out 1-1/4″ Exhaust BSPP |
| YD1523C5002 | Lockout Valve 15 Series / Classic Manual 3/2 Way, 3/4″ In-Out 1-1/4″ Exhaust BSPP |
| Y1523C6002 | Lockout Valve 15 Series / Classic Manual 3/2 Way, 1″ In-Out 1-1/4″ Exhaust NPT |
| YD1523C7012 | Lockout Valve 15 Series / Classic Manual 3/2 Way, 1-1/4″ In-Out 1-1/4″ Exhaust BSPP |
| YD1523C5012 | Lockout Valve 15 Series / Classic Manual 3/2 Way, 3/4″ In-Out 3/4″ Exhaust BSPP |
| YD1523C3002 | Lockout Valve 15 Series / Classic Manual 3/2 Way, 3/8″ In-Out 3/4″ Exhaust BSPP |
| YD1523C4002 | Lockout Valve 15 Series / Classic Manual 3/2 Way, 1/2″ In-Out 3/4″ Exhaust BSPP |
