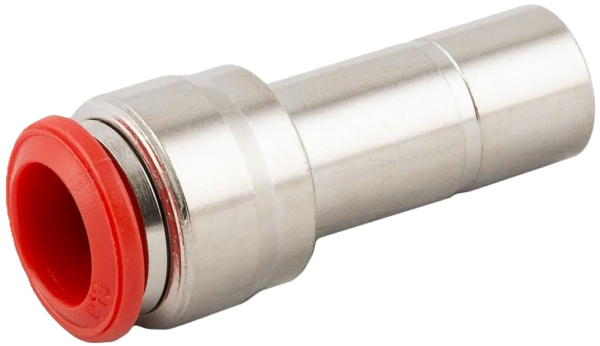

Reducer
Reducer
Code Number – 50700
- Made from nickel plated brass
- Compatible with air, vacuum, water and steam
- Stainless steel washer ensures perfect tube clamping on all types of metals
- All threads are equipped with tightening parts
- The short taper thread has been designed to reduce overall length and allow assembly with different female threads (both taper as well as parallel)
Product Description
Infinity push-in fittings, made from nickel plated brass, are compatible with air, vacuum, water and steam. When compared to other products on the market, Infinity Push-In Fittings boast an impressive list of advantages.
The stainless steel washer ensures the perfect tube clamping on all types of metals, without damage to the surface.
The connection between the tube and fitting, and the particular geometric shape of the seal, ensures a total tightness for all applications, even in severe conditions such as impact and vibrations.
The ‘short’ taper thread has been designed to offer a reduced overall length and smaller hex dimensions compared to parallel threads, and tightening parts allow the direct assembly of the fittings, keeping installation time to a minimum.
| CODE | DESCRIPTION |
| 50700 4-3 | Reducer 4mm x 3mm |
| 50700 6-4 | Reducer 6mm x 4mm |
| 50700 6-5 | Reducer 6mm x 5mm |
| 50700 8-4 | Reducer 8mm x 4mm |
| 50700 8-6 | Reducer 8mm x 6mm |
| 50700 10-4 | Reducer 10mm x 4mm |
| 50700 10-6 | Reducer 10mm x 6mm |
| 50700 10-8 | Reducer 10mm x 8mm |
| 50700 12-8 | Reducer 12mm x 8mm |
| 50700 12-10 | Reducer 12mm x 10mm |
| MIN WORKING PRESSURE | -0.99 bar |
| MAX WORKING PRESSURE | 15 bar |
| MIN TEMPERATURE | -20°C |
| MAX TEMPERATURE | 80°C |
| COMPATIBLE FLUIDS | Air, vacuum, water & steam |
